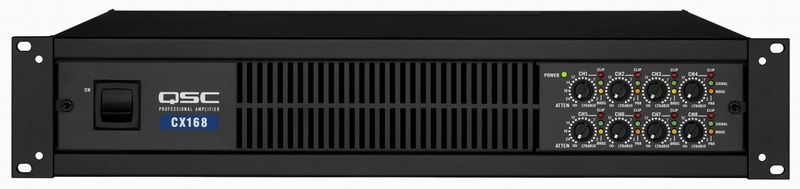

| SPECIFICATIONS |
CX168 |
CX108V |
| |
STEREO MODE, All Channels Driven
Continuous Average Output Power Per Channel |
| 8 ohms 0.05% THD 20 Hz - 20 kHz |
90W |
- |
| 4 ohms 0.1% THD 20 Hz - 20 kHz |
130W |
- |
Midband Ratings
8 ohms 0.1% THD 1 kHz
4 ohms 0.1% THD 1 kHz
70V 0.2% THD 20 Hz-20 kHz |
All Channels
100W
140W
- |
Single Ch.
120W
180W
- |
-
-
100W |
| |
BRIDGE MONO MODE |
|
16 ohms 0.1% THD 20 Hz - 20 kHz
8 ohms 0.1% THD 20 Hz - 20 kHz
140V 0.2% THD 20 Hz-20 kHz
|
180W
260W
- |
-
-
200W |
| Noise (20 Hz - 20 kHz) |
-107 dB |
-100 dB |
| Input Sensitivity (for full-rated output power) |
1.35 Vrms @ 8 ohms |
1.26 Vrms @ 70V |
| Voltage Gain |
20x (26 dB) |
56x (35 dB) |
| Input Clipping |
6 Vrms (+18 dBu) |
6 Vrms (+18 dBu) |
| Output Circuitry |
Class AB+B |
Class AB+B |
| Frequency Response |
20 Hz - 20 kHz, ± 0.2 dB
8 Hz - 50 kHz, +0/-3 dB |
20 Hz - 20 kHz, ± 0.4 dB
8 Hz - 70 kHz, +0/-3 dB |
| Damping Factor |
Greater than 200
(5 kHz and below) |
Greater than 500
(5 kHz and below) |
| Input Impedance |
6 kilohms unbalanced,
12 k ohm balanced |
6 kilohms unbalanced,
12 k ohm balanced |
| Distortion (SMPTE-IM) |
Less than 0.02% |
Distortion (typical)
20 Hz - 20 kHz: 10 dB below rated power
1.0 kHz and below: full rated power |
Less than 0.1% THD
Less than 0.03% THD
|
| Connectors |
Input: 3-pin Euro-style detachable terminal blocks, (one per ch.)
DataPort: HD-15 Connector, (Ch 1+2, 3+4, 5+6, 7+8)
Output: Two 8-pin Euro-style detachable terminal blocks |
| Cooling |
Variable speed fan, rear-to-front airflow through tunnel heat sink |
| Controls |
Front: AC switch, Ch 1, 2, 3, 4, 5, 6, 7 & 8 gain knobs
Rear: DIP switches for Ch.1 - Ch.8, clip limiter on/off, LF filter on/off, LF filter freq select 33 or 70 Hz for CX168, LF filter freq select 50 or 75 Hz for CX108V, inputs parallel or stereo; bridge mode |
| Indicators |
PWR-ON: Green LED
SIGNAL-35db: Green LED
(1 per channel)
CLIP: Red LED (1 per channel) |
PARALLEL INPUTS: Orange LED (1 per ch. pair)
BRIDGED: Yellow LED (1 per ch. pair) |
| Amplifier Protection |
Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads |
| Load Protection |
On/off muting; Individual channel DC fault blocking |
| Dimensions |
19” (48.3 cm) rack mounting, 3.5”(8.9 cm) tall (2 rack spaces), 14” (35.6 cm) deep (from front mounting rails) |
| Weight |
21 lb (9.5 kg) net, 27 lb (12.3 kg) shipping |
| Power Requirements |
100, 120, 230 VAC, 50-60 Hz (configured at factory) |
