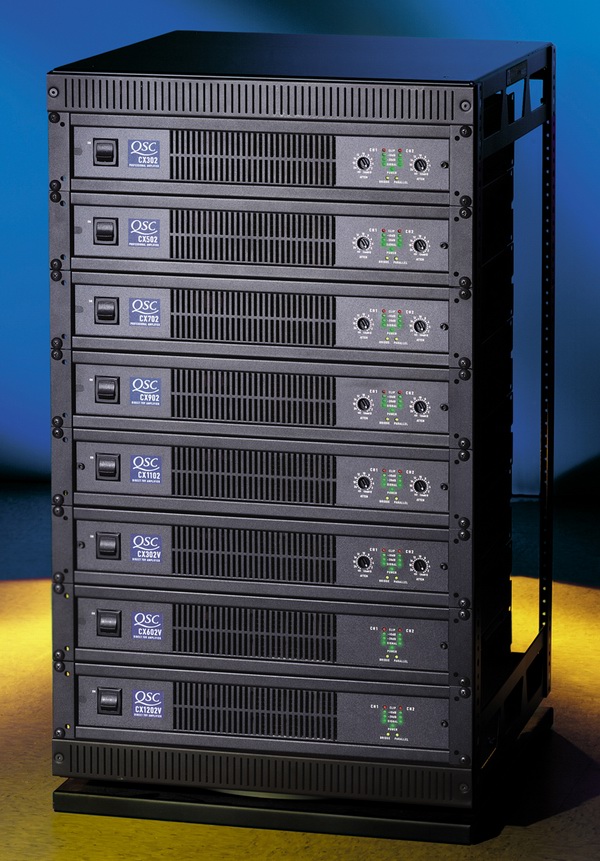

CX302/502/702/902/1102/302V/602V/1202V 详细参数 |
| 型号 |
CX302 |
CX502 |
CX702 |
CX902 |
CX1102 |
CX302V |
CX602V |
CX1202V |
| |
立体声模式（双声道驱动） |
| 8 Ω, 20 Hz-20 kHz, 0.05% THD |
200 W |
300 W |
425 W |
550 W |
700 W |
- |
550 W |
700 W |
| 4 Ω, 20 Hz-20 kHz, 0.05% THD |
325 W |
500 W |
700 W |
900 W |
1100 W |
- |
- |
1100 W |
| 2 Ω, 1 kHz, 1% THD |
600 W |
800 W |
1200 W |
1500 W |
1700 W |
- |
- |
- |
| 70V, 20 Hz-20 kHz, 0.05% THD |
400 W
(with IT-42*) |
- |
- |
400 W |
800 W |
200 W |
400 W |
800 W |
| 70V, 1 kHz, 0.05% THD |
- |
- |
- |
440 W |
1000 W |
250 W |
440 W |
1000 W |
| 70V, 1 kHz, 1% THD |
- |
- |
- |
600 W |
1200 W |
300 W |
600 W |
1200 W |
| |
桥接单声道模式 |
| 16 Ω, 20 Hz-20 kHz, 0.1% THD |
400 W |
600 W |
850 W |
1100 W |
1400 W |
- |
1100 W |
1400 W |
| 8 Ω, 20 Hz-20 kHz, 0.1% THD |
700 W |
1100 W |
1500 W |
2000 W |
2200 W |
- |
- |
2200 W |
| 4 Ω, 1 kHz, 1% THD |
1200 W |
1600 W |
2400 W |
3000 W |
3400 W |
- |
- |
- |
| 140V, 20 Hz-20 kHz, 0.05% THD |
- |
- |
- |
800 W |
1600 W |
400 W |
800 W |
1600 W |
| 140V, 1 kHz, 0.05% THD |
- |
- |
- |
880 W |
2000 W |
500 W |
880 W |
2000 W |
| 140V, 1 kHz, 1% THD |
- |
- |
- |
1200 W |
2400 W |
600 W |
1200 W |
2400 W |
| Noise, 20 Hz-20 kHz |
>-107 dB |
>-107 dB |
>-106 dB |
>-106 dB |
>-106 dB |
>-106 dB |
>-106 dB |
>-106 dB |
| Input Sensitivity @ 8 Ω |
1.26 Vrms |
1.23 Vrms |
1.16 Vrms |
1.17 Vrms |
1.35 Vrms |
1.26 Vrms |
1.26 Vrms |
1.26 Vrms |
| Voltage Gain @ 8 Ω |
30 dB |
32 dB |
34 dB |
35 dB |
35 dB |
35 dB |
35 dB |
35 dB |
| 输出 |
AB+B |
AB+B |
H, 2-tier |
H, 2-tier |
H, 2-tier |
AB+B |
AB+B |
H, 2-tier |
| 失真 (SMPTE-IM) |
Less than 0.02% |
| 频响 |
20 Hz-20 kHz, +/- 0.2 dB |
| Damping Factor |
Greater than 500
|
| 输入阻抗 |
6k Ω unbalanced, 12k Ω balanced
|
| Cooling |
Variable-speed fan, rear-to-front air flow
|
| Connectors, each channel |
Input: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)
Output: Safety-shrouded barrier strip
|
| 尺寸 |
19" (48.3 cm) wide, 3.5" (8.9 cm) tall (2 RU),
14" (35.6 cm) deep (from front mounting rails)
|
| 重量 |
21 lbs (9.5 kg) net
27 lbs (12.3 kg) shipping
|
|
|
|
