| SPECIFICATIONS |

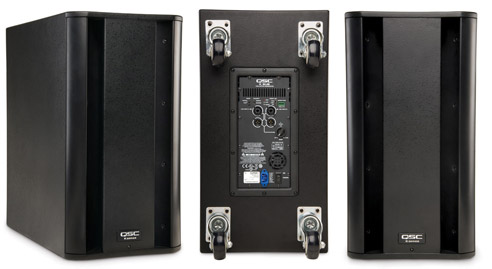

KSub |
| Configuration |
4th Order Bandpass |
Transducers
Low-frequency |
2 x 12" cone transducers |
| Frequency Response (-6 dB) |
48 Hz - 134 Hz |
| Frequency Range (-10 dB) |
44 Hz - 148 Hz |
| Maximum SPL1 |
130 dB peak |
| Amplifiers |
| Power Output2 |
1000 W continuous Class D (2x500 W)
2000 W peak |
| Input Impedance (ohms) |
XLR / ¼": 40k balanced / 20k unbalanced |
| Controls |
Power, Gain, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (On/Off/Limit) |
| Indicators |
Power, Signal, Standby, Limit |
| Connectors |
Dual balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out, Remote gain control, Locking IEC power connector |
| Cooling |
On demand, 50 mm variable speed fan |
| Amplifier Protection |
Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection |
Thermal limiting, excursion limiting |
| AC Power Input |
Universal power supply 100 - 240 VAC, 50 - 60 Hz |
AC Power Consumption
(1/8 Power) |
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A |
| Enclosure |
| Material |
Painted birch plywood |
| Finish |
Black textured paint |
| Dimensions (HWD) |
26" x 14" x 28.1" (including casters)
665 mm x 356 mm x 714 mm |
| Weight (Net) |
74 lb / 33.6 kg |
| Available Accessories |
KSub COVER |
