| SPECIFICATIONS |

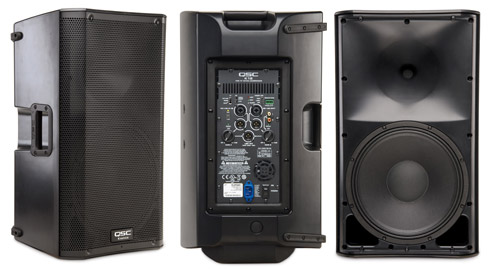

K12 |
| Configuration |
Multipurpose 2-way |
Transducers
Low-frequency
High-frequency |
12" cone transducer
1.75" diaphragm compression driver |
| Frequency Response (-6 dB) |
52 Hz - 18 kHz |
| Frequency Range (-10 dB) |
48 Hz - 20 kHz |
| Nominal Coverage (-6 dB) |
75° conical |
| Maximum SPL1 |
131 dB peak |
| Amplifiers |
| Power Output2 |
1000 W continuous Class D
(500 W LF, 500 W HF)
2000 W peak |
| Input Impedance (ohms) |
XLR / ¼": 40k balanced / 20k unbalanced
XLR / ¼" MIC mode: 2260 balanced
RCA: 10k |
| Controls |
Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit) |
| Indicators |
Power, Signal A, Signal B, Standby, Limit, Mic |
| Connectors |
Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector |
| Cooling |
On demand, 50 mm variable speed fan |
| Amplifier Protection |
Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection |
Thermal limiting, excursion limiting |
| AC Power Input |
Universal power supply 100 - 240 VAC, 50 - 60 Hz |
AC Power Consumption
(1/8 Power) |
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A |
| Enclosure |
| Material |
Impact resistant ABS |
| Finish |
Black paint |
| Grille |
Black powder coated 18 gauge steel |
| Dimensions (HWD) |
23.7" x 14" x 14"
603 mm x 356 mm x 356 mm |
| Weight (Net) |
41 lb / 18.6 kg |
| Available Accessories |
K12 TOTE, K12 YOKE, K SERIES M10 KIT |
