SPECIFICATIONS
|

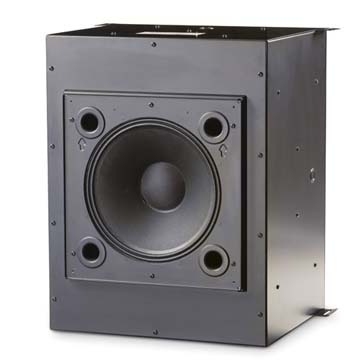

AD-C1200 |
Configuration |
Passive |
Low-frequency Transducer |
12" (304 mm) ferrite woofer |
Hight-frequency Transducer |
1.75" (44 mm) neodymium compression driver |
Frequency Range 1
Frequency Response (-6 dB)
Useable Frequency Range (-10 dB) |
42 Hz - 18 kHz
37 Hz - 18 kHz |
Maximum Output 2
Calculated Peak Output
Calculated Continuous Output |
124 dB SPL
118 dB SPL |
Nominal Coverage |
85° horizontal and vertical |
Nominal Impedance |
16 ohms |
Power Rating
RMS Power Handling3
Recommended Max Amp Power
|
300 W
600 W |
Sensitivity |
93 dB SPL, 1W/1m |
Bass Loading |
Ported |
Transformer Type |
Custom low distortion laminated core, wide bandwidth design |
Transformer Taps |
100 V: 16 ohms bypass, 150 W, 75 W, 37.5 W
70 V: 16 ohms bypass, 150 W, 75 W, 37.5 W, 18.2 W |
Agency Rating |
CE, UL 1480 (commercial/professional use)
UL 2043 (air handling spaces) |
ENCLOSURE
|
Enclosure Volume |
AD-C1200BB: 88 L (3.1 ft 3) |
Connectors |
Back box (AD-C1200BB): ceramic block connector inputs and “through” connectors (rated for 400 W max). Loudspeaker Baffle: Euro-style connectors. |
Mounting Hardware |
Pre-installed, suspended, back box, four mounting tabs.
Loudspeaker Baffle: six mounting screws. |
Weight - Net |
AD-C1200: 25 lb / 11.3 kg
AD-C1200BB: 53 lb / 24 kg
Complete Assembly: 78 lb / 35.3 kg |
Dimensions (HWD) |
Complete Assembly: 23" x 18" x 15.5" (584 mm x 454 mm x 393 mm) |
