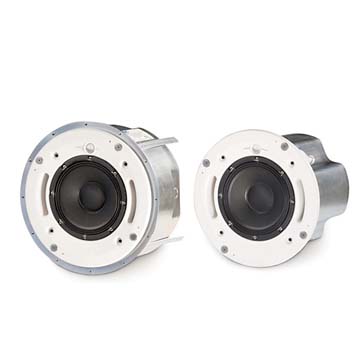

SPECIFICATIONS
|
AD-C820 |
AD-C821 |
Configuration |
Passive |
Low-frequency Transducer |
8" (203 mm) ferrite woofer |
Hight-frequency Transducer |
1.4" (36 mm) neodymium compression driver |
Frequency Range 1
Frequency Response (-6 dB)
Useable Frequency Range (-10 dB) |
61 Hz - 18 kHz
52 Hz- 18 kHz |
Maximum Output 2
Calculated Peak Output
Calculated Continuous Output |
120 dB SPL
114 dB SPL |
Nominal Coverage |
90° horizontal and vertical |
Nominal Impedance |
16 ohms |
Power Rating
RMS Power Handling3
Recommended Max Amp Power
|
200 W
400 W |
Sensitivity |
91 dB SPL, 1W/1m |
Bass Loading |
Ported |
Transformer Type |
Custom low distortion laminated core, wide bandwidth design |
Transformer Taps |
100 V: 16 ohms bypass, 100 W, 50 W, 25 W
70 V: 16 ohms bypass, 100 W, 50 W, 25 W, 12.5 W |
Agency Rating |
CE, UL 1480 (commercial/professional use) UL 2043 (air handling spaces) |
ENCLOSURE
|
Enclosure Volume |
AD-C800BB: 18 L (0.64 ft 3) |
18 L (0.64 ft 3) |
Connectors |
Back box (AD-C800BB): ceramic block connector inputs and “through” connectors (rated for 400 W max). Loudspeaker Baffle (AD-C820): 10-pin MATE-N-LOK™ connector and faston connectors. |
Two 2-pin Euro-style connectors |
Mounting Hardware |
Pre-installed, suspended, back box, four vertical mounting straps.
Loudspeaker Baffle: captive, integral Mounting Clamps. |
Captive, integral Mounting Clamps. Insert enclosure into mounting hole, and tighten. Suspended ceiling Split-ring and Suspended Ceiling Tile Rails - sold separately. |
Weight - Net |
AD-C820: 8 lb (3.6 kg)
AD-C800BB: 9.5 lb (4.3 kg)
System Weight: 17.5 lb (7.9 kg) |
16 lb (7.3 kg) |
Dimensions |
Diameter: 14.9" (379 mm)
Enclosure only Depth: 8.3" (211 mm)
Enclosure with mounting straps Depth: 11.2" (284 mm) |
Diameter: 13.4" (340 mm)
Depth: 11.9" (302 mm) |
