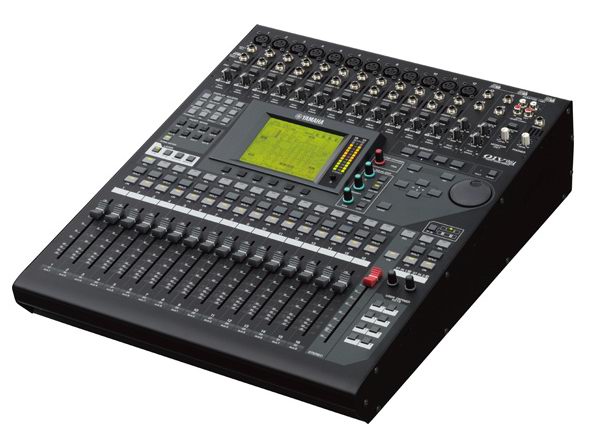

01V96i |
| Mixing capability |
Mixing channels |
32 Mono + 4 Stereo |
| GROUP |
8 |
| AUX |
8 |
| MAIN |
Stereo |
| Input channel functions |
Gate Attenuator 4-band PEQ 2x Compressor Delay Pan |
| Output channel functions |
Attenuator 4-band PEQ Compressor Delay |
| On-board processors |
4x SPX multi effectors |
| I/O |
Mic inputs |
12 |
| Phantom power |
+48V DC; ON/OFF per 4ch |
| Line inputs |
2x Stereo 2x 2tr in |
| AD converter |
24-bit; 128-time over sampling |
| Line outputs |
Stereo output Monitor output 4x Omni output |
| DA converter |
24-bit; 128-time over sampling |
| Digital I/O |
ADAT (8-in/8-out) 2tr in/out |
| Expansion slots |
Mini-YGDAI (16-in/16-out) |
| Control and others |
To Host(USB) MIDI Word clock I/O |
| General specifications |
01V96i |
| Internal processing |
32bit Accumulator: 58bit |
| Sampling frequency rate |
Internal |
44.1 kHz 48 kHz 88.2 kHz 96 kHz |
| External |
44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) |
| Signal delay |
Less than 1.6ms CH INPUT to STEREO OUT (@SampIing frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO OUT (@SampIing frequency = 96kHz) |
| Total harmonic distortion |
CH INPUT to STEREO OUT: Less than 0.05% 20Hz to 20kHz @+14dBu into 600Ω / Less than 0.01% 1kHz @+24dBu into 600Ω (@SampIing frequency = 48kHz) / Less than 0.05% 20Hz to 40kHz @+14dBu into 600Ω / Less than 0.01% 1kHz @+24dBu into 600Ω (@SampIing frequency = 96kHz) |
| Frequency response |
CH INPUT to STEREO OUT: 0.5 -1.5dB 20Hz - 20kHz @+4dBu into 600Ω(@SampIing frequency = 48kHz) / 0.5 -1.5dB 20Hz - 40kHz @+4dBu into 600Ω(@SampIing frequency = 96kHz) |
| Dynamic range |
110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz |
| Hum & noise level |
Equivalent input noise |
-128dBu Equivalent Input Noise. |
| Residual output noise |
-86dBu residual output noise. STEREO OUT: STEREO OUT off. / -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal level and all CH INPUT faders at minimum level. / -64dBu (68dB S/N) STEREO OUT: STEREO fader at nominal level and one CH INPUT fader at nominal level |
| Crosstalk |
-80dB adjacent input channels (CH1-12) / -80dB adjacent input channels (CH13-16) / -80dB input to output |
| Power requirements |
AC100V 120V 220-240V 50/60 Hz |
| Power consumption |
90W |
| Dimensions |
W |
436mm; 17-1/8in |
| H |
148mm; 5-7/8in |
| D |
548mm; 21-5/8in |
| Net weight |
14kg; 30.86lbs |
| Others |
Fader: 100mm motorized x17 |
